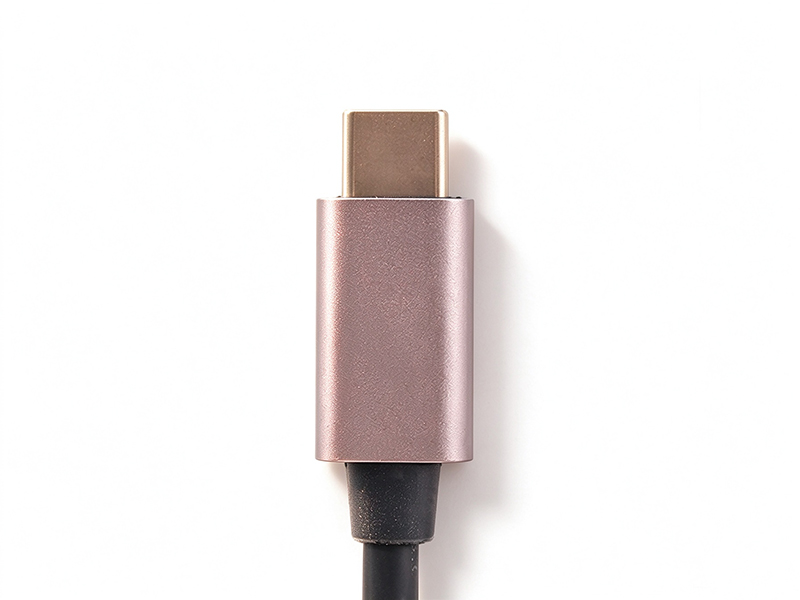

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 24 Pins | Key Position: | Type C |
| Left Connector: | USB 3.2 | Right Connector: | USB 3.2 |
| AWG Gauge: | 30AWG ~ 20 AWG | Connection Type: | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PBT | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | - |
| Shielding: | Shield | Overmolding: | PVC / TPE |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / TPE |
| Technical Characteristics | |||
| Rated Current: | 1A ~ 5A | Rated Voltage: | 30V |
| Rated Temperature: | -25°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 / VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC 620 |
