| Specifications | |||
| Number of Pins: | - | Key Position: | - |

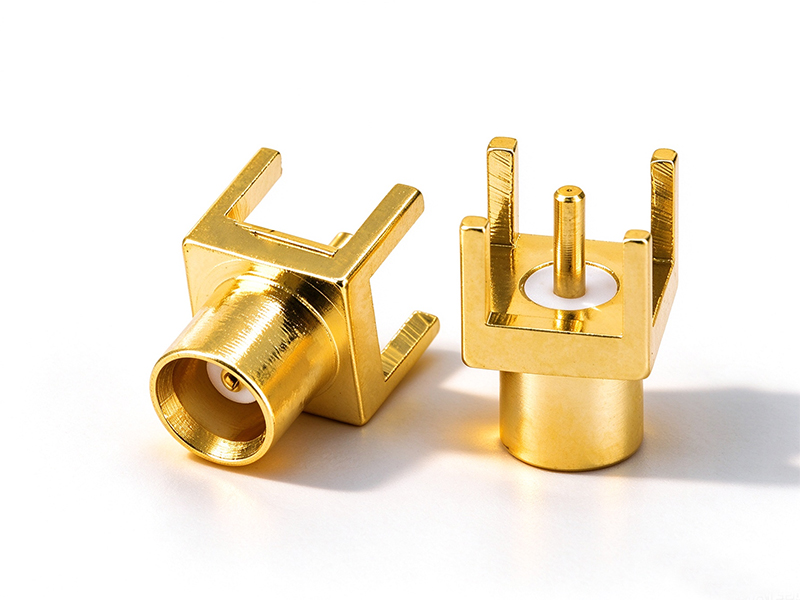

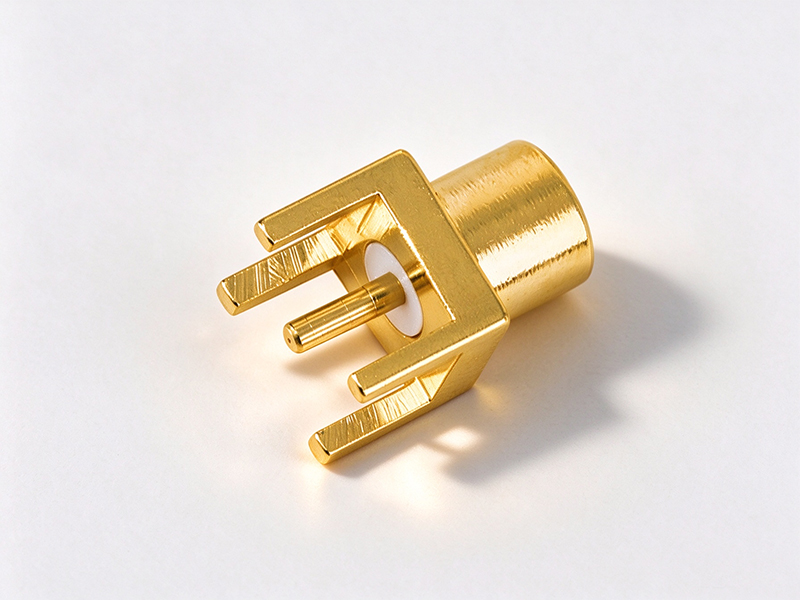

| Left Connector: | MMCX Socket | Right Connector: | - |
| AWG Gauge: | - | Connection Type: | Plug and unplug |
| Wires & Cables Length: | - | ||
| Material | |||
| Housing & Insulation: | FEP | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Copper Alloy, Gold-Plated | Sealing: | - |
| Shielding: | Shield | Overmolding: | - |
| Wires & Cables Conductor: | - | Wires & Cables Jacket: | - |
| Technical Characteristics | |||
| Rated Current: | 1A | Rated Voltage: | 335Vrms |
| Rated Temperature: | -55°C ~ + 155°C | Impedance: | 50 Ω |
| Insulation Resistance: | ≥ 5000 MΩ | Contact Resistance: | ≤ 3m Ω |
| Durability: | ≥ 500 Times | Frequency Range: | 0 ~ 6 GHz |
| Product Certification: | RoHS, REACH | Production Design Standards: |
IPC 620 |
