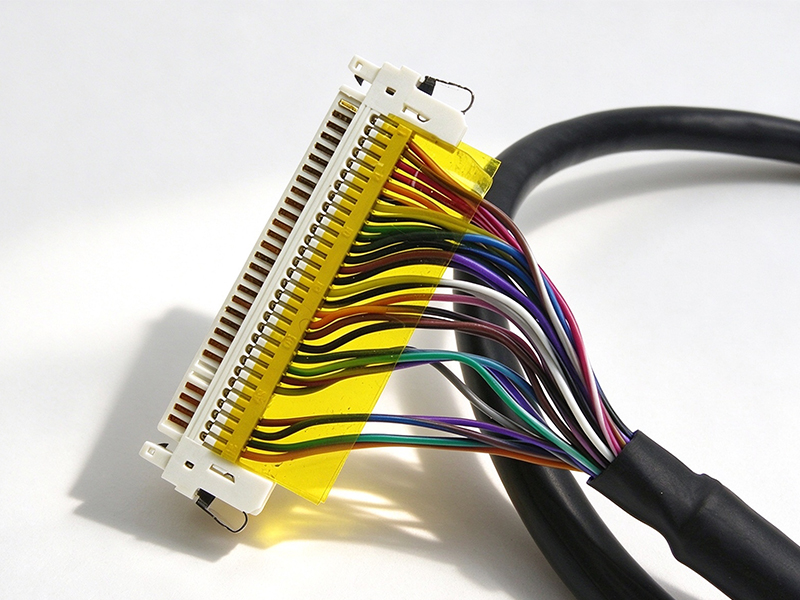

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 20~30 Pins | Key Position: | - |
| Left Connector: | FI-X30HL | Right Connector: | FI-X30HL |
| AWG Gauge: | 30 AWG | Connection Type: | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | - | Sealing: | - |
| Shielding: | - | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 0.5A | Rated Voltage: | 200V |
| Rated Temperature: | -25°C ~ + 80°C | Flame Retardant Grade: | UL94V-0 / VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC620 |
