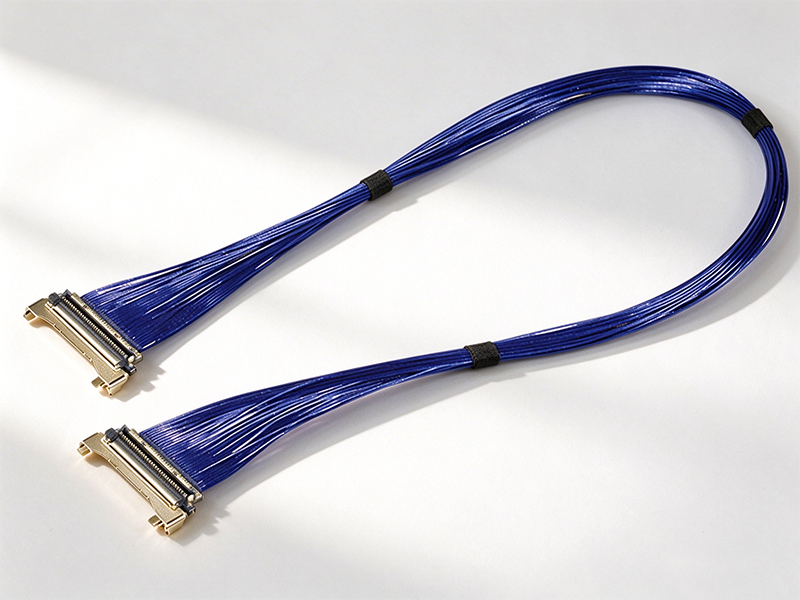

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 30~70 Pins | Key Position: | - |
| Left Connector: | IPEX 20878-040T | Right Connector: | IPEX 20878-040T |
| AWG Gauge: | 34~40 AWG | Connection Type: | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | LCP | Contacts: | Copper Alloy, Tin & Gold-Plated |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | - |
| Shielding: | Shield | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | FEP |
| Technical Characteristics | |||
| Rated Current: | 0.5A | Rated Voltage: | 30V |
| Rated Temperature: | -25°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | CE,RoHS | Production Design Standards: | IPC 620 |
